Accessories
Crystalyte Controllers
Controller Models and Specs :
-
36V 12A ; 36V 15A and 36V 25A => 9 pcs Mosfets
-
48V 50A ==> 12 pcs Mosfets
-
72V 40A ~ 50A ~ 60A and 96V 45A ==> 18 pcs Mosfets
-
96V 90A ==> 24 pcs Mosfets
Remarks :
-
Cut off voltage setting : 24V at 19V ; 36V at 30A; 48V at 40V and 72V at 60V
-
Program controller available
-
Mosfets irfb4310 x 12pcs ; 48A Controller with irfb4110 Mosfets ; 96V Controller with irfb 4115 Mosfets
-
+ Increase Voltage ( V ) => Will increase the motor speed
-
+ Increase Current ( A ) => Will increase the motor torque
-
The high current controller 72V 50A / 60A / 80A / 90A and 96V 45A and 90A design for The Crown and 5403 motor ( X5 Motor )
Active Power Management Display ( APM )
Main function :
-
Display :
-
Battery Capacity
-
Battery voltage
-
Trip km / mile
-
Speed level
Reprogram following data :
-
Cut off voltage / LVC
-
Maximum current
-
Pedal assist start function / immediate start
-
9 motor power speed adjust
-
Cruise
-
Torque
Active Power Management Display Owner's Manual

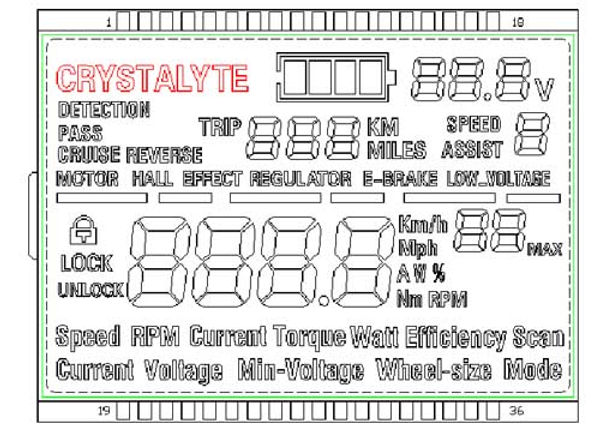

Fig. Function Display
Regulators
* Battery indicator throttle with 24V or 36V or 48V optional
Throttle without battery indicator :
Electric Break ; On Off Switch ; 3 Speed Switch and PAS Sensor
** Electric brake cut off switch : It is for stopping the motor's power supply. It is also very useful for safety request.
** 3 speed adjustment : It use to adjust the motor's output current with 25% , 50% and 100% output. In order to set the motor speed whether on-road
and off-road.
# L = Lower speed ; M = Middle speed ; H = High speed
# Specs may change based on their different setting.
** On & Off switch : It is use for electric regen breaking switch or electric horn switch.
Cruise Control
-
Manual set the cruise speed with + / - button
Pedal Assist Sensor
Right : Pedal Assist Sensor
Left : Installed position on bike crake
