Crystalyte SAW Motors
SAW400 Series Motors :
Motor Models : 406; 408 and 4012
* Nm = Newton meter
* Motor speed record based on 36V system with 26" wheel, While motor is hook up with 48V, the speed increase.
- Motor test based on 25A controller. While controller's current increase, the torque increase too.
A maximum current 40A can hook up the 400 series motor.
- Motor Covers Color : Blue ; Gray ; White ; Black ; Motor Rotor Color : Silver
Summary of the SAW motor :
Speed km/hr : 406 > 408 > 4012
Torque N.m : 4012 > 408 > 406
Motors Specs :
Remarks on 400 series motor :
- Permanent magnet direct driver / gear less hub motor
- High-grade NdFeB Magnets
- Sheet-type lamination with deep slot
- High-quality hall effect sensors
- NSK sealed bearing
- Motor covers with stainless Torx screws
- Plug-in hall effect hall effect and motor phase connectors

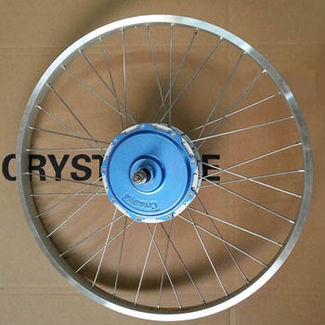

Motor Laced with 26" wheel :
- Motor phase wire diameter 2.5mm2
- Spokes with G13 and G12 are available
- Motor wire length : 30cm
- Anderson Power Pole connector for motor phase and small XRL connector for hall effect sensor
* Motor specs may change without notice. Please contact us for confirmation.
