Crystalyte High Power Motors
TC and The Crown Series

The Crown motors with 3 series :

TC30 Series : TC3065 ; TC80 and TC30100

TC4065 ; TC4080 and TC40100

3. The Crown Series :

The Crown Motors : TC65 ; TC80

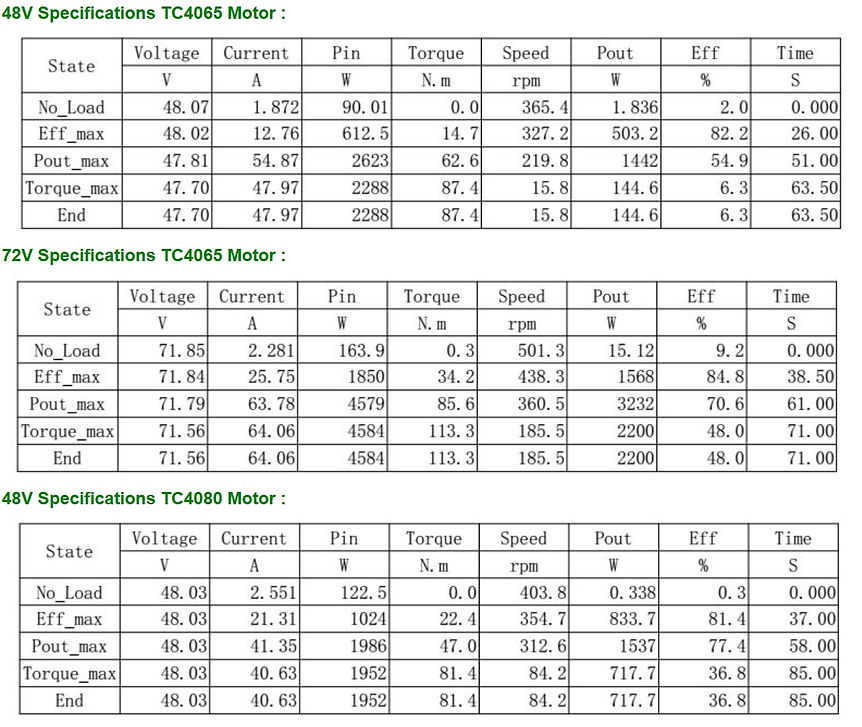

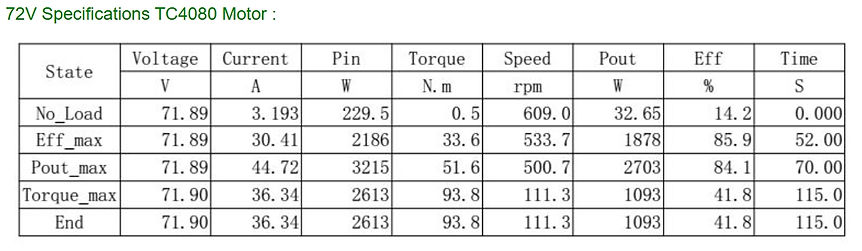

** The TC65 ; TC80 and TC100 specs are all same as above, as well as TC4065 and TC4080.

Because they have the same stator + same magnets + same magnet wire and same windings inside the motors.

TC30xx / TC40xx and The Crown motors speed

* TC65 = 65km / 72V 　　　　TC4065 = 65km/hr / 72V TC3065 = 65km/hr

* TC80 = 80km / 72V TC4080 = 80km/hr TC3080 = 80km/hr

* TC100 = 100km / 72V TC40100 = 100km/hr TC30100 = 100km/hr

# Motors TC30100 TC40100 and TC100 are available for custom-made for high speed.

* Speed based on 26" wheel / The speed record may be different based on the loading and road condition.

* The TC30xx series has lower torque than the TC65/TC80/TC100 and TC40xx series . Because the higher the stator is, the less with only 10mm by 30mm.

TC and The Crown Motors' main specifications

Axle Dropout :
TC30xx Motor :
Both available for front wheel 100mm
Rear 135mm rear wheel for 7 speed freewheel
TC40xx series
Axle dropout : 140mm / one speed freewheel => For normal bicycle
Axle dropout 162mm / one speed freewheel => For custom very strong bike frame
The Crown Motor :
140mm dropout / Custom made 135mm dropout available.
All Motors Axle :
Axle dimension : M14 - Strong axle x 10mm flat part
TC motor phase wire in bigger size : dia. 6mm2 x 3pcs
TC Weight : 9kg / ea bare motor
The Crown with aluminum Rotor and Covers / TC30xx and TC40xx with steel rotor only
TC motors with black standard color
Motor with hall effect + temperature sensor

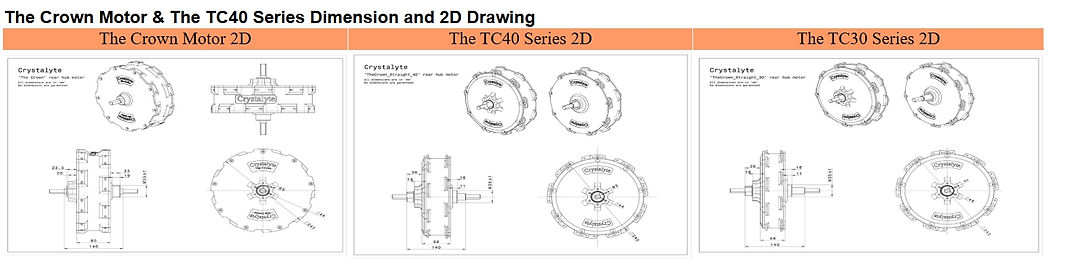

TC65 TC80 and TC100 Motor Dimension

Spokes angle and length

Crystalyte provide stainless spokes

The TC and The Crown stators and the lamination sheets :

TC motor designed with large and deep slots in the stator in order to provide higher power.
For this improvement, TC and The Crown motors has higher torque and higher efficiency.
On the other hand, the deep lamination slot design with less temperature rise.
TC and The Crown stators with aluminum frame

Freewheel and Disc Brake :

One speed freewheel

TC series is available with standard 6" to 8" disc brake mount.

Rim for TC

Strong and Double Wall rim request for TC to make sure it is strong enough.

* Crystalyte provide double wall rim J31BS rim with different size.

Remark :

* Motor available up to 96V system.

* 48V system available for TC motor as well. The speed design base on 72V.

* Battery capacity suggest with 12ah or more. i.e. 72V 12ah or 72V 17ah ...etc.

* Suggest run TC motor with 50A ~ 85A controller or higher voltage system. i.e. 48V 50A , 72V 50A
