G-motors are designed in lightweigh for free hub and 8 to 9 speed cassette.
It contains a special outlet to make it different from the other motors.
Front Wheel G Motor
Rear Wheel G Motor
8 Speed Cassette with G Rear Motor
G30 Motor Speed : 30km/hr in 26" wheel with 36V system
G30 Weight : 3.8kg rear wheel and 3.8 kg front wheel
Freehub and freewheel => 8 ~ 9 Cassette at G Rear Motor
G Motor Front and Rear Dimensions
Front wheel and rear motor axle dropout :
-
Front G motor 100mm dropout for 24" to 28" wheel bike
-
Rear 135mm for 8 speed or 9 speed cassette
Spokes :
-
Normal Angle 90 degree Spokes for motor : G13 stainless spokes
-
Number of spokes holes : 36
Disc brake :
-
Front wheel and rear wheel available for disc brake installation
-
Standard 6" and 8 " disc brakes are available
Motor colors ：
-
RAL9007 / Gray Color
-
Black Color

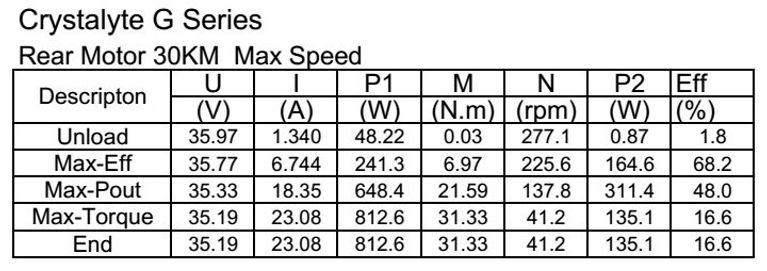

G-30 Motors Specs :

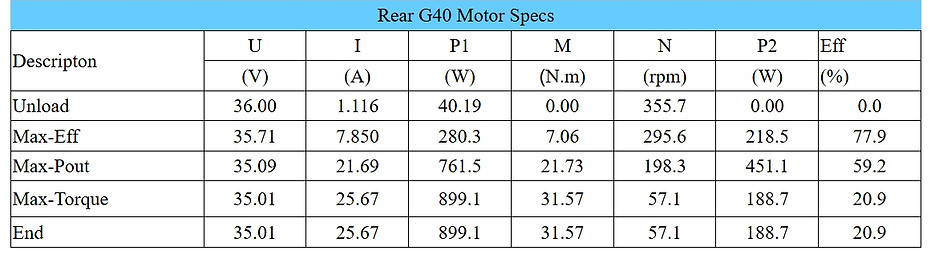

G-40 Motor Specs :
Front G hub wheels laced and Rear with 9 Speed Cassetter
26 Inch G Front Hub Laced
16"1.3/8 Wheel Laced
24 Inch Rear Wheel Laced
